SDT HATCHChecker

$4,095.00

The SDT HATCHecker is an ultrasound solution designed to test the integrity of vessels for weathertightness. FREE SHIPPING*

When Hatch Cover Tightness Matters

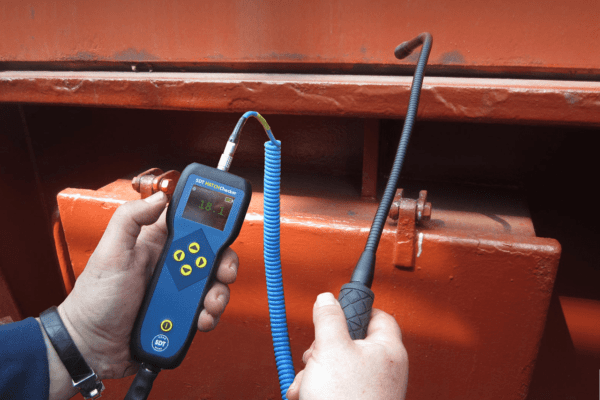

The HATCHecker is an ultrasound solution designed to test the integrity of vessels for weathertightness. Use HATCHecker to pinpoint the exact location of leaks in hatch covers.



  • Focused

    Confirm that hatch covers are weathertight and compliant with ruling regulations by using the new SDT HATCHecker which includes cutting edge technology that makes both the T9 transmitter and handheld receiver light, compact, robust and suitable for use in the harsh marine environment.

  • Simple

    The ergonomic and revolutionary design, vibrant color display and limited number of keys make the SDT HATCHecker easy to use, handy for travellers and allows for reliable leak detection with pinpoint accuracy on board ships.

  • Affordable

    SDT’s renowned quality and engineering, together with pioneering design and competitive price setting make the SDT HATCHecker the most suitable and affordable solution for dealing with leaky hatch covers.





Contact us for more information.

*FREE ground shipping in the continental US.

SDT340 Ultrasound tool(Opens in a new browser tab)

Tech Specs

General
Function Ultrasound measurement device
Display 160×128 pixel Color OLED
Keyboard 5 function keys
Typical measurement range -6 to 99.9 dBμV (reference 0 dB = 1 μV)
Resolution 0.1 digits
Measurement bandwidth 35 to 42 kHz
Signal amplification +30 (built-in sensor gain) dB to +102 dB by step of 6 dB
RMS period time 250 milliseconds (main screen) / 3 sec (bar graph)
Sampling frequency 64 kHz
ADC Resolution 12 bit
Minimum sensitivity -31dB (@40 kHz, 0 dB-1 V/µbar)
Environmental
Operating temperature range -10 to +50 °C |14 to 122°F
IP rating IP42
Standards EN 61326-1:2013, EN 55011:2016 + A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + IS1:2009 +A2:2010
Mechanical
Housing material ABS
Dimensions housing 158 x 59 x 38,5 mm |6.22” x 2.32” x 1.51”
Flexible rod length (Removable sensor) 445 mm |17.51”
Weight 350g | 12.35 oz
Battery/Utility connector USB Mini-B 5-pin
Power
Battery 2 AA batteries
Autonomy 7 hours
Audio
Operable with SDT provided head set only
Maximum audio output (protection) +83dB SPL with SDT headset
Headset 25dB NRR Peltor HQ headset
Other
Warranty Lifetime
