SDT270 Dynamic

Call for price

The SDT270 Dynamic is a full featured ultrasound, vibration, temperature and RPM measurement tool.

This SDT270 Dynamic is a full featured ultrasound tool. Measure ultrasound, temperature and RPM with on-board sensors and two sensor inputs for external ultrasound and vibration sensors and accessories. The 270 is great for measuring air and vacuum leaks, bearing condition and monitoring. You can also monitor valves, steam, hydraulic systems, electrical faults and valve monitoring. It uses four condition indicators (RMS, Max RMS, Peak and Crest Factor) to allow for more thorough diagnosis. Each ultrasound and vibration measurement also records a clear, accurate and scaled .wav audio file so the measurement can be listened to in the UAS software as part of the analysis.

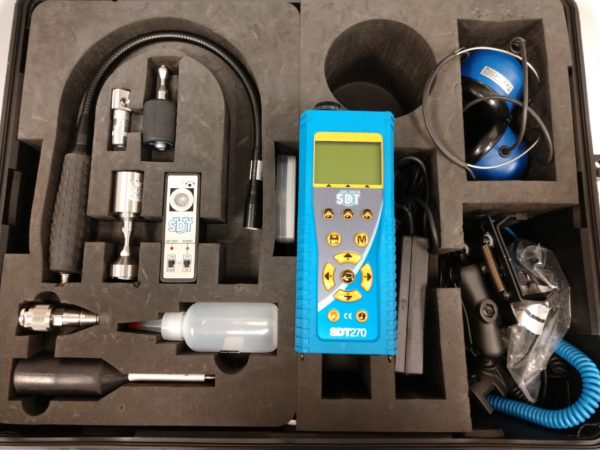

This system includes:

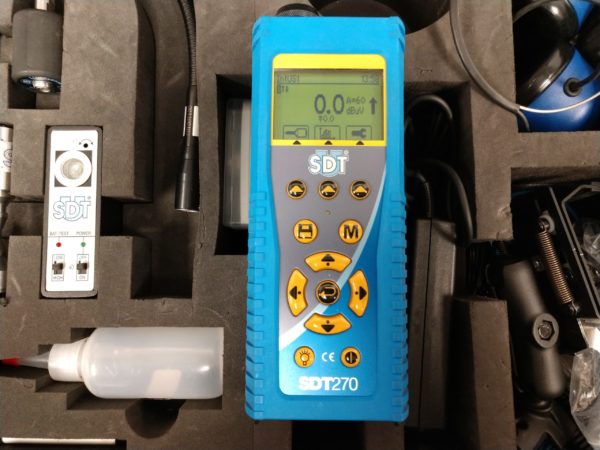

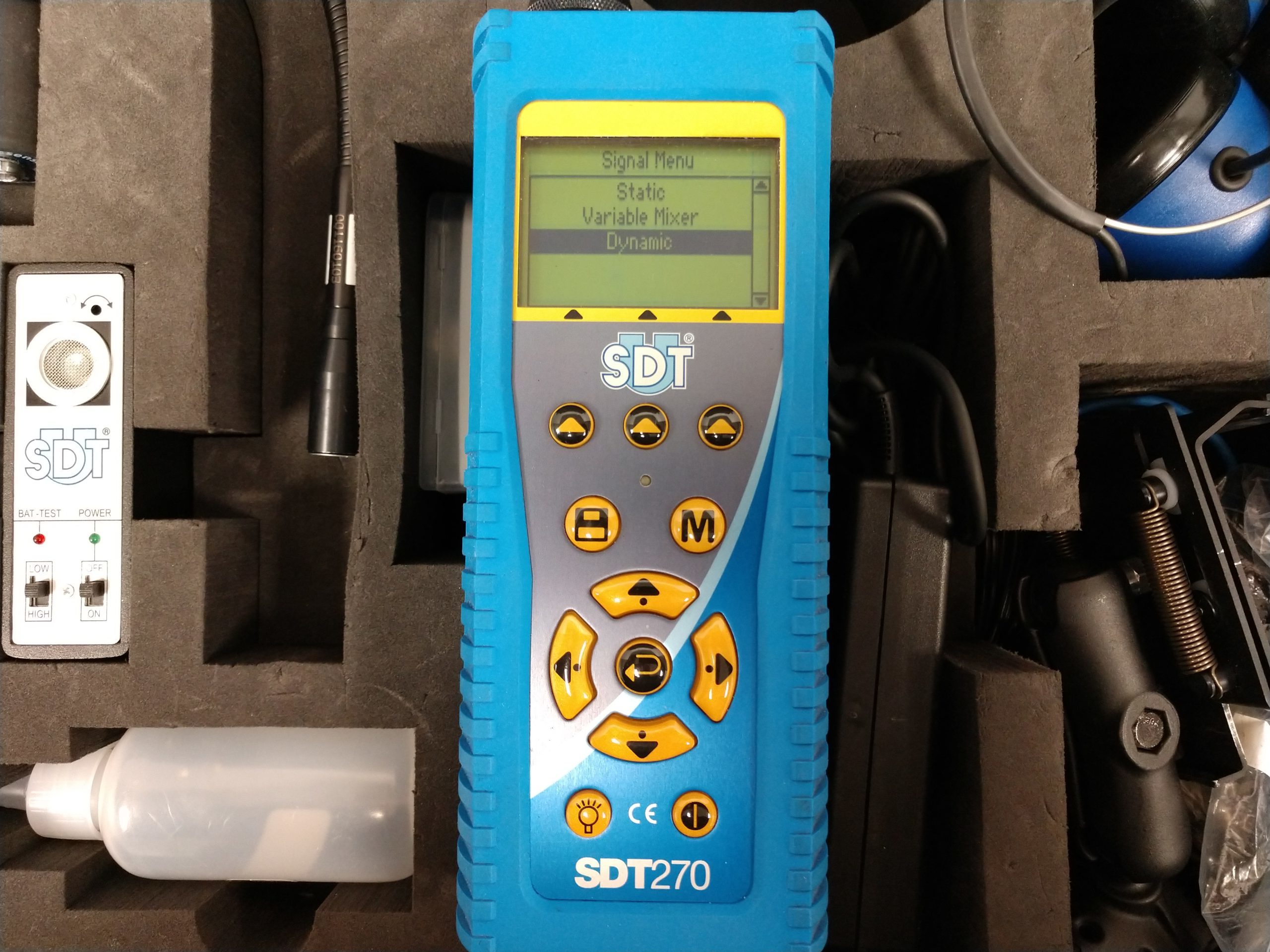

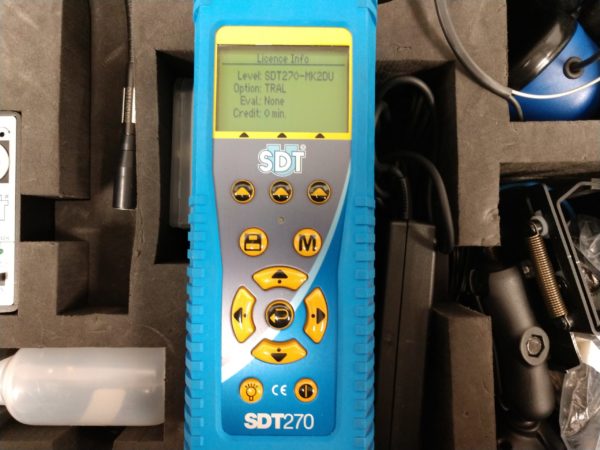

  • SDT270 dynamic ultrasound tool
  • Behind the neck (hardhat) headphones
  • Battery charger and USB cable
  • Temperature function
  • Tachometer function
  • Vibration function
  • Ultranalysis Suite 3.0 software license
  • RS1-T threaded contact ultrasound sensor, M6
  • Flex airborne sensor
  • LubeSense threaded contact sensor
  • Black coiled cable for LubeSense sensor, LEMO7 TO LEMO7, 23.62″-70.87″ L
  • Magnetic base for contact sensor
  • ICP Accelerometer, 100MV/G, 2-pin mil-spec top exit connector, M6
  • Acoustic lube adapter, Zerk grease gun to RS1-T sensor
  • Shoulder strap
  • Leather belt holder with clip
  • USB PC cable

Contact us for more information or demonstration.



SDT340 ultrasound system(Opens in a new browser tab)

SDT Paradish2 sensor(Opens in a new browser tab)

Tech Specs

On-board measurements Ultrasound, Vibration, Infrared temperature and Tachometer.
External Sensors 2 ports (Lemo 7pin connector)
Data Logger SS/SD At least 4000 Static measurements spread over 1000 locations.
Data Logger DD idem SS/DD plus 15,000 seconds of Dynamic data @8k sampling rate or 3,700 seconds for 32k
Data Logger SU/DU At least 10,000 Static measurements and 15,000 seconds of Dynamic measurements @8k sampling rate or 3,700 seconds @32k spread over 10,000 locations
Communication USB Interface
Auto Power Down After preset time – adjustable by user
Response Time <9 milliseconds
Sensitivity Class I instrument exceeding ASTM 1002-11 requirements for gas leak detection with the appropriate sensor.
Headphones High quality industrial headset having a Noise Reduction Rating (NRR) of 25 dB
Housing Extruded Aluminum
Dimensions 226 x 90 x 40mm (8.9 x 3.54 x 1.57 inches)
Weight 30g /29.3oz (with battery & holster)
Headphone High quality industrial headset having a Noise Reduction Rating (NRR) of 25 dB
Battery Pack Rechargeable 8 cell 4.8v, 4600mAh NIMH
Warranty Lifetime

Brochure

SDT270_Brochure_EN
