FLIR T540 thermal camera

$16,439.00$19,689.00

With the ergonomic, high resolution FLIR T540 thermal camera you can troubleshoot hot spots, find hidden faults, and confirm repairs quickly.

Use the FLIR T540 thermal camera to troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T540 thermal camera. This 161,472 (464 × 348) pixel thermal imaging camera has a bright 4″ LCD and a 180° rotating lens platform. You can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time. Add the Inspection Route camera option, and you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

  • Make Critical Decisions Quickly

    Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

  • Flexible and Ergonomic

    The T540’s optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

  • Intuitive User Interface

    The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.

Add the FLIR Thermal Studio Suite software to help users manage thousands of thermal images and videos. This subscription software offers the advanced processing features needed for predictive maintenance on critical components, system troubleshooting, and increased productivity. With the FLIR Route Creator plug-in to Thermal Studio Pro to streamline inspection workflows and simplify reporting. Users create their route in the software and download it directly to any FLIR camera with Inspection Route enabled. The camera then directs the user through the inspection in a logical sequence, organizing data and thermal images by asset. Available in more than 20 languages, FLIR Thermal Studio software is key to producing professional thermal images and reports.

The purchase of a T540 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

Contact us for more information.

For on-site alignment, ultrasound and lubrication service please visit Precise Reliability









Specifications

FLIR T540 thermal camera SPECIFICATIONS:

OVERVIEW
Accuracy
±2°C (±3.6°F) or ±2% of reading
Color alarm (isotherm)
•Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation
Difference Temperature
Yes
Display Technology
IPS
Focal Length
17 mm (0.67 in.), 24°
Housing material
PCABS with TPE, magnesium
IR Resolution
464 × 348 pixels
Laser Alignment
Position is automatically displayed on the infrared image
Laser Pointer
Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
NETD
<40 mK
Object Temperature Range
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) There are no optional ranges
Packaging Size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
Programmable Buttons
2
Resolution
464 × 348 pixels (VGA)
Screening
0.5°C (0.9°F) accuracy at 37°C (98.6°F) with reference
Size (L x W x H)
Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
Thermal Sensitivity/NETD
<40 mK, 24° @ 30°C (86°F)
Warranty
http://www.flir.com/warranty/
Text
Predefined list or touchscreen keyboard
Time Lapse [Infrared]
10 sec to 24 hrs
Voice
60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
Weight & Dimensions (without lens)
1.3 kg (2.9 lbs), 140 × 201 × 84 mm (5.5 × 7.9 × 3.3 in)
FLIR Screen-EST Mode
Yes
Sampling Average in Screen-EST Mode
Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Accuracy [Drift] in Screen-EST Mode
Accuracy (drift): ±0.3°C (±0.5°F)
CONNECTIONS & COMMUNICATIONS
Audio
Microphone and speaker for voice annotation of images
Communication Interfaces
USB 2.0, Bluetooth, Wi-Fi
METERLiNK – Bluetooth
Communication with headset and external sensors
Remote Control
•Using FLIR Tools (using USB cable) •FLIR Tools Mobile (over Wi-Fi)
Storage Media
Removable SD card
USB
USB Type-C: data transfer/video/power
USB – Standard
USB 2.0 High Speed
Video Out
DisplayPort over USB Type-C
METERLiNK
Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
Setup Commands
Local adaptation of units, language, date, and time formats
ENVIRONMENTAL
EMC
•ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission)
Emissivity Correction
Yes, variable from 0.01 to 1.0 or selected from materials list
Humidity (Operating and Storage)
IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
Operating Temperature Range
–15°C to 50°C (5°F to 122°F)
Radio Spectrum
•ETSI EN 300 228 •FCC Part 15.249 •RSS-247 Issue 2
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
–40°C to 70°C (-40°F to 158°F)
Tripod Mounting
UNC 1/4″-20
Shock & Vibration & Encapsulation
25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
IMAGING & OPTICAL
Aspect ratio
4:3
Auto Rotation
Yes
Camera software update
Use PC software FLIR Tools
Color
Black
Color palettes
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Type and Pitch
Uncooled microbolometer, 17 µm
Digital Camera
5 MP, with built-in LED photo/video lamp
Digital Camera Focus
Fixed
Digital Camera FOV
53° × 41°
Digital Zoom
1–6× continuous
f-number
1.3, 24°
Field of View
24° × 18°
Field of view match
Yes
Focus
Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
Frame Rate [Full Window]
30 Hz
Gallery
Yes
Global Positioning System [GPS]
Location data automatically added to every still image and first frame in video from built-in GPS
Image Adjustment
•Automatic •Automatic maximum •Automatic minimum •Manual
Image Frequency
30 Hz
Image Sketch
From touchscreen, on infrared image only
Lens
24°
Lens Identification
Automatic
Minimum Focus Distance
0.15 m (0.49 ft.), 24°, Macro mode 71 µm as option to 24°
Minimum Focus Distance with MSX
0.5 m (1.64 ft.), 24°
Non-Radiometric IR or Visual Video
H.264 to memory card
Non-radiometric IR video streaming
H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture
Resizable and movable
Radiometric IR video recording
Real-time radiometric recording (.csq)
Radiometric IR video streaming
Over UVC
Spatial resolution (IFOV)
0.90 mrad/pixel, 24°
Spectral Range
7.5 – 14 µm
Viewfinder
No
Visual Video Recording
H.264 to memory card
Color Depth
24
UltraMax
Quadruples pixel count; activated in menu and processed in FLIR Tools
Video Lamp
Built-in LED light
Viewing Angle
80°
Visual Image
Yes
Visual Video Streaming
Yes
MEASUREMENT & ANALYSIS
Area measurement information
Yes
Languages
21
Laser Distance Meter
Yes; dedicated button
Measurement Corrections
Yes
Measurement Function Alarm
Audible/visual alarms (above/below) on any selected measurement function
Measurement Presets
•No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2
Reference Temperature
Yes
Spotmeter and Area
3 ea. in live mode
Automatic hot & cold detection
Automatic maximum/minimum markers within area
METER DATA
Cover Glass Material
Dragontrail®
Display
4″, 640 x 480 pixel touchscreen LCD with auto-rotation
POWER
Battery operating time
Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery size (L x W x H)
59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in.)
Battery Type
Li-ion battery, charged in camera or on separate charger
Battery voltage
3.6 V
Battery weight
195 g (6.89 oz.)
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time (using two-bay charger)
3.5 h to 90% capacity, on-screen indicator
External Power Operation
AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
Power Management
Automatic shut-down and sleep mode
SHIPPING INFORMATION
Packaging
Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
STORAGE MEDIA
Image File Format
Standard JPEG with measurement data included
THERMAL IMAGING
Detector Resolution
464 x 348

Lens options

FLIR T300238 Macro lens
Macro Lens

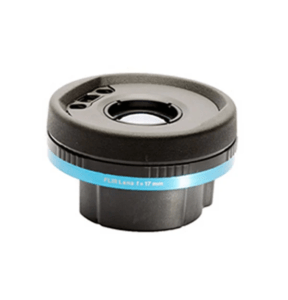

FLIR T199588 lens with case
14° lens
FLIR T199590 lens with case
42° lens
FLIR T199589 lens with case
24° lens
FLIR T300095 6deg lens
6° lens

Accessories

FLIR T199347ACC hard case
Camera hard case
FLIR T198495 Nylon Pouch
Camera nylon pouch
FLIR T300188 hand and neck strap
Hand and neck strap
FLIR T199610 battery charger
Battery charger
FLIR T911633ACC power supply
Battery charger power supply
FLIR T911846ACC USB Power supply
USB power supply

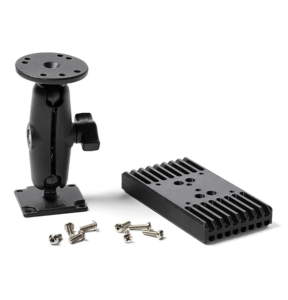

FLIR T300218 mounting bracket kit
Mounting bracket kit
FLIR T300369 mounting bracket
Mounting kit

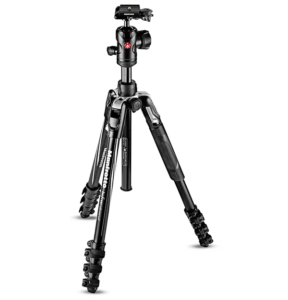

FLIR T911997 Tripod
Tripod
FLIR T991998 HDMI splitter
HDMI splitter
FLIR T911630ACC power supply
Power supply
FLIR T911631ACC USB cable
USB cable
FLIR T911705ACC USB cable
USB cable
FLIR T911845ACC USB adapter
USB adapter
FLIR T131171ACC remote operation button
Remote button
FLIR T197771ACC bluetooth
Bluetooth headset

Warranty Information

flir_limited-warranty
