Easy-Laser D22 laser


Easy-Laser D22 rotating laser transmitter for measuring flatness, level, bores, rolls, straightness and many more applications.

Out of stock

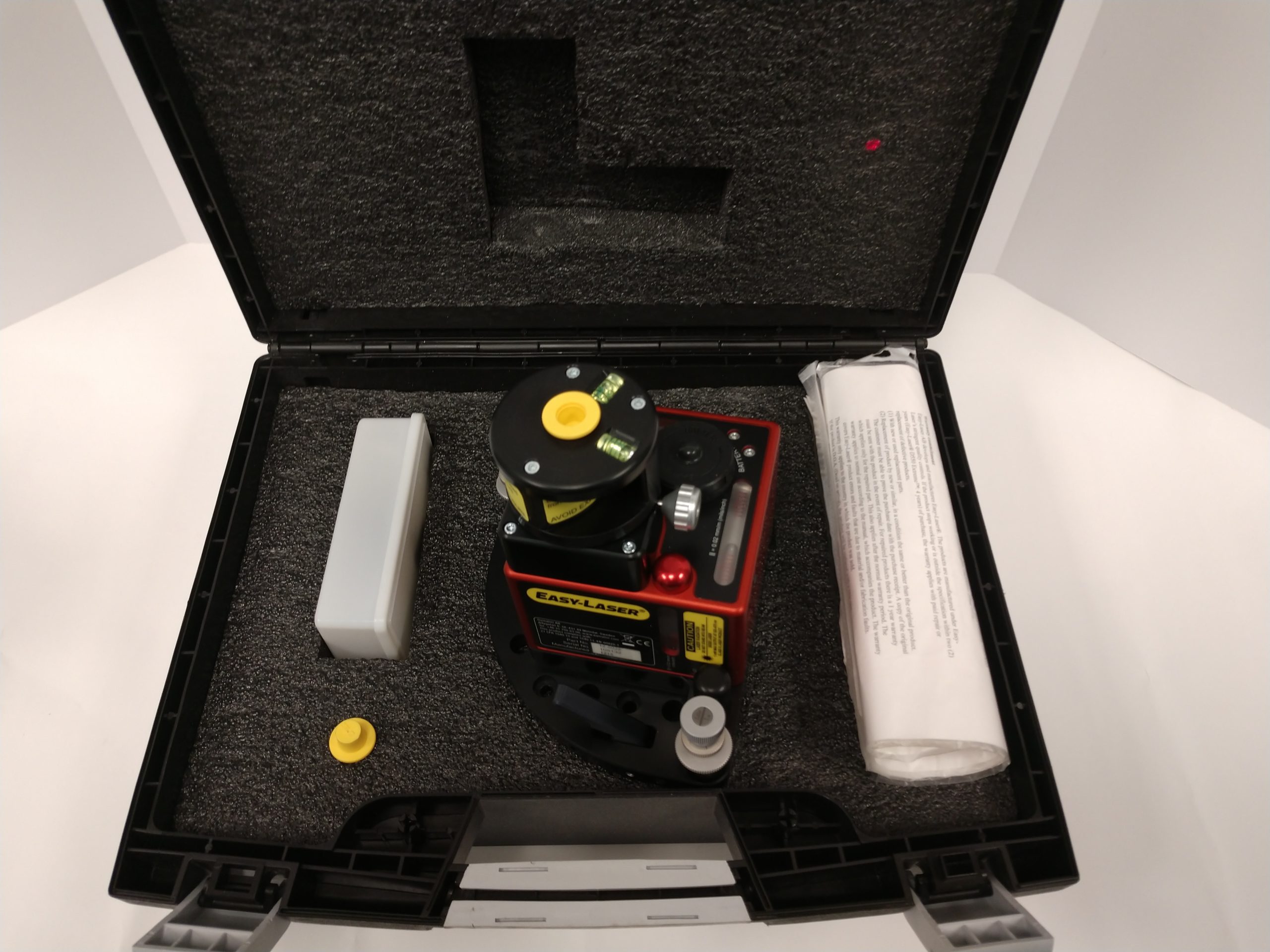

The Easy-Laser laser transmitter D22 is a manual rotating laser for measuring flatness, straightness, squareness and parallelism. The laser beam sweeps 360° with a measurement distance of up to 40 meters [130´] in radius. The laser beam can also be angled 90° to the sweep, within 0.01 mm/m [0.01 mils/inch]. Tilt table included. This is a demo system that has had very little use and is in excellent condition. The Easy-Laser D22 can be used with the Easy-Laser XT770 and E710 (which includes geometric apps) laser shaft alignment tools. With the E710 it can measure Straightness, Flatness/Twist, Level and Parallelism on machine bases, compressor frames, etc. It includes the carrying case and accessory box.

The D22 can be mounted in various ways. The important thing is to always tighten rods, screws and magnets firmly. Also be sure the surface where the magnets are attached is clean. If possible use the safety strap.

This is a used demonstration D22 in excellent condition. Please note that some measurement applications will require additional brackets.

Contact us for more information.
